API Documentation

5eeebd3c7472c3c2e6618ff9a94eca7af8af593e

 All Classes Namespaces Functions Variables Enumerations Properties Pages
Public Types | Public Member Functions | Protected Member Functions | Private Attributes | List of all members
Layer Class Referenceabstract

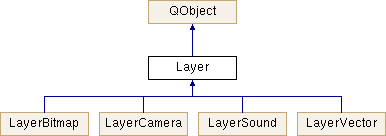

+ Inheritance diagram for Layer:

Public Types

enum  LAYER_TYPE {
  UNDEFINED = 0, BITMAP = 1, VECTOR = 2, MOVIE = 3,
  SOUND = 4, CAMERA = 5
}


Public Member Functions

 Layer (Object *, LAYER_TYPE)

int id () const

LAYER_TYPE type () const

Object * object () const

void setObject (Object *obj)

void setName (QString name)

QString name () const

void switchVisibility ()

bool visible () const

void setVisible (bool b)

virtual Status saveKeyFrameFile (KeyFrame *, QString dataPath)=0

virtual void loadDomElement (const QDomElement &element, QString dataDirPath, ProgressCallback progressForward)=0

virtual QDomElement createDomElement (QDomDocument &doc) const =0

QDomElement createBaseDomElement (QDomDocument &doc) const

void loadBaseDomElement (const QDomElement &elem)

int getMaxKeyFramePosition () const

int firstKeyFramePosition () const

bool keyExists (int position) const

int getPreviousKeyFramePosition (int position) const

int getNextKeyFramePosition (int position) const

int getPreviousFrameNumber (int position, bool isAbsolute) const

int getNextFrameNumber (int position, bool isAbsolute) const

int keyFrameCount () const

bool addNewKeyFrameAt (int position)

bool addKeyFrame (int position, KeyFrame *)

bool removeKeyFrame (int position)

bool swapKeyFrames (int position1, int position2)

bool moveKeyFrameForward (int position)

bool moveKeyFrameBackward (int position)

bool loadKey (KeyFrame *)

KeyFrame * getKeyFrameAt (int position) const

KeyFrame * getLastKeyFrameAtPosition (int position) const

bool keyExistsWhichCovers (int frameNumber)

KeyFrame * getKeyFrameWhichCovers (int frameNumber) const

bool getVisibility () const

void foreachKeyFrame (std::function< void(KeyFrame *)>) const

void setModified (int position, bool isModified)

bool isFrameSelected (int position) const

void setFrameSelected (int position, bool isSelected)

void toggleFrameSelected (int position, bool allowMultiple=false)

void extendSelectionTo (int position)

void selectAllFramesAfter (int position)

void deselectAll ()

bool moveSelectedFrames (int offset)

Status save (const QString &sDataFolder, QStringList &attachedFiles, ProgressCallback progressStep)

virtual Status presave (const QString &sDataFolder)

bool isPaintable () const

- Public Member Functions inherited from QObject
virtual const QMetaObject * metaObject () const const

 QObject (QObject *parent)

virtual bool event (QEvent *e)

virtual bool eventFilter (QObject *watched, QEvent *event)

QString objectName () const const

void setObjectName (const QString &name)

bool isWidgetType () const const

bool isWindowType () const const

bool signalsBlocked () const const

bool blockSignals (bool block)

QThread * thread () const const

void moveToThread (QThread *targetThread)

int startTimer (int interval, Qt::TimerType timerType)

int startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void killTimer (int id)

T findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T > findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T > findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T > findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList & children () const const

void setParent (QObject *parent)

void installEventFilter (QObject *filterObj)

void removeEventFilter (QObject *obj)

QMetaObject::Connection connect (const QObject *sender, const char *signal, const char *method, Qt::ConnectionType type) const const

bool disconnect (const char *signal, const QObject *receiver, const char *method) const const

bool disconnect (const QObject *receiver, const char *method) const const

void dumpObjectTree ()

void dumpObjectInfo ()

void dumpObjectTree () const const

void dumpObjectInfo () const const

bool setProperty (const char *name, const QVariant &value)

QVariant property (const char *name) const const

QList< QByteArray > dynamicPropertyNames () const const

void destroyed (QObject *obj)

void objectNameChanged (const QString &objectName)

QObject * parent () const const

bool inherits (const char *className) const const

void deleteLater ()

 Q_DISABLE_COPY (Class)

 Q_DISABLE_MOVE (Class)

 Q_DISABLE_COPY_MOVE (Class)

T qobject_cast (QObject *object)

T qobject_cast (const QObject *object)

T qFindChild (const QObject *obj, const QString &name)

QList< T > qFindChildren (const QObject *obj, const QString &name)

QList< T > qFindChildren (const QObject *obj, const QRegExp &regExp)

 Q_CLASSINFO (Name,Value)

 Q_INTERFACES (...)

 Q_PROPERTY (...)

 Q_ENUMS (...)

 Q_FLAGS (...)

 Q_ENUM (...)

 Q_FLAG (...)

 Q_ENUM_NS (...)

 Q_FLAG_NS (...)

 Q_OBJECT Q_OBJECT

 Q_GADGET Q_GADGET

 Q_NAMESPACE Q_NAMESPACE

 Q_NAMESPACE_EXPORT (EXPORT_MACRO)

 Q_SIGNALS Q_SIGNALS

 Q_SIGNAL Q_SIGNAL

 Q_SLOTS Q_SLOTS

 Q_SLOT Q_SLOT

 Q_EMIT Q_EMIT

 Q_INVOKABLE Q_INVOKABLE

 Q_REVISION Q_REVISION

 Q_SET_OBJECT_NAME (Object)

 QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT


Protected Member Functions

void setId (int LayerId)

virtual KeyFrame * createKeyFrame (int position, Object *)=0

- Protected Member Functions inherited from QObject
QObject * sender () const const

int senderSignalIndex () const const

int receivers (const char *signal) const const

bool isSignalConnected (const QMetaMethod &signal) const const

virtual void timerEvent (QTimerEvent *event)

virtual void childEvent (QChildEvent *event)

virtual void customEvent (QEvent *event)

virtual void connectNotify (const QMetaMethod &signal)

virtual void disconnectNotify (const QMetaMethod &signal)


Private Attributes

LAYER_TYPE meType = UNDEFINED

Object * mObject = nullptr

int mId = 0

bool mVisible = true

QString mName

std::map< int, KeyFrame
*, std::greater< int > > 		mKeyFrames

QList< int > mSelectedFrames_byLast

QList< int > mSelectedFrames_byPosition


Additional Inherited Members

- Static Public Member Functions inherited from QObject
QString tr (const char *sourceText, const char *disambiguation, int n)

QString trUtf8 (const char *sourceText, const char *disambiguation, int n)

QMetaObject::Connection connect (const QObject *sender, const char *signal, const QObject *receiver, const char *method, Qt::ConnectionType type)

QMetaObject::Connection connect (const QObject *sender, const QMetaMethod &signal, const QObject *receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection connect (const QObject *sender, PointerToMemberFunction signal, const QObject *receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection connect (const QObject *sender, PointerToMemberFunction signal, const QObject *context, Functor functor, Qt::ConnectionType type)

bool disconnect (const QObject *sender, const char *signal, const QObject *receiver, const char *method)

bool disconnect (const QObject *sender, const QMetaMethod &signal, const QObject *receiver, const QMetaMethod &method)

bool disconnect (const QMetaObject::Connection &connection)

bool disconnect (const QObject *sender, PointerToMemberFunction signal, const QObject *receiver, PointerToMemberFunction method)

- Public Attributes inherited from QObject
typedef QObjectList

- Properties inherited from QObject
 objectName


Detailed Description

Definition at line 39 of file layer.h.

The documentation for this class was generated from the following files:
